Julius Futterman´s cicuitry is as ingenius as simple: the speakers are directly connected without an output transformer. Consequently, the impulsivity is considerably higher and the reproduction of the wave form of the musical signals is more accurate. A circuitry without an output transformer has the advantage of lower and upper threshold frequencies because no limitations through winding capacitance and leakage inductance of the transformer become operative.
|2 x 30 watts at 8 ohm
2 x 55 watts at 16 ohm
1 x 100 watts at 8 ohm
|Frequency response (± 1 dB)||10 - 100.000 Hz|
|Signal/noise ratio (15 w)||79 dB|
|Input impedance||10 kOhm|
Subject to change without notice
EternalArts takes the idea on and ennobles it with the latest technology and highest manufacturing quality. You obtain a modern instrument with the advantages of the original circuitry. Conoisseurs of an OTL´s phenomenal tonal abilities will appreciate this property.
Using two OTL MK II as monoblocks, the rated output of 2 x 30 watts can be quadrupled to 2 x 100 watts. We extensively tested this mode and recommend it for continuous operation without restrictions. With this enormous performance, the OTL is even able to drive speakers of lower efficiency offered internationally. This variation is basis of the OTL mono blocs.

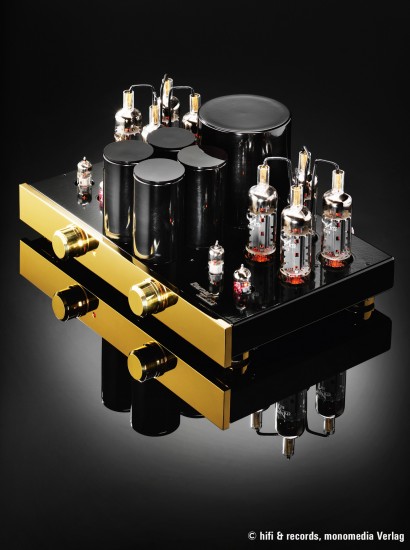

In a development phase of four years we have optimized the apparatus. The glossy powder-coated design, the heavy gilded brass front and the aesthetic positioning of transformers, condensers and tubes form a harmonious and animated image. Two perforated protection covers (removable) for the tubes are parts of the amplifier. The circuitry was modified technically. In place of the American 6FS5, the popular European dual triode ECC82 is responsible or the phase splitting. The three printed circuit boards are printed with gold plated 70µ-tracks. The toroid transformer from German specialist Transtec performs 650 VA and provides heating voltages for both, the EL-tetrode and its PL-version. We either surrender the OTL MK II on request with the Svetlana EL-509 or with the PL-519 out of former Siemens fabrication. Functional stability and tonal harmony were most important for the development. Diligent work of the engineers and particular know-how from the early days of tube development effectuated the unique ease and remarkable musical balance of the OTL MK II.
Mit der Entwicklung des OTL Mk III wurde das Ziel verfolgt, ein technisch ebenbÃ¼rdiges, ebenso edles, aber optisch schlichteres Modell vorzustellen. Durch Ãœberarbeitung und Auswahl alternativer Materialien bei Front und Hauben sowie dem Verzicht auf das ALPS-Potentiometer entstand diese schlichtere Version als reine Endstufe.
Da wir bei unseren GerÃ¤ten grundsÃ¤tzlich eine lange Laufzeit ohne Ã„nderungen verfolgen, haben wir gÃ¼nstigere Preise durch unsere Lieferanten eingerÃ¤umt bekommen und diese direkt an unsere Kunden weitergegeben.
